Zero Dollar Fix for a Loose V-Belt

My new Yazoo Mower

I recently picked up a Yazoo mower that is a pretty neat piece of equipment.  It’s a 3-wheeled design, with the 3’rd wheel in the back providing rear steer. The Yazoo model I picked up at auction has the 23HP Kohler engine and a massive 76″ front mower deck.

I don’t know the full history of my new (to me) mower, but the folks at the site where I picked it up said they really liked it, but were selling it because parts were becoming hard to find. They also mentioned that the large belt for the mower deck was quite expensive.

When I got the Yazoo mower home and began getting familiar with it, I noticed the mower deck’s belt tensioner was maxed out, and the belt really wasn’t all that tight. However the belt looked fairly new though, so I am suspecting it was slightly larger than the original factory size. The belt would slip off the pulleys occasionally, after only very large bumps initially, but as this happened several times the belt has been wearing out fast; becoming yet even looser and causing the issue increasingly often.

Eventually it began happening constantly, and I decided it would need a new belt (hopefully slightly smaller this time!) But since funds are tight right now, I wanted to see if there was anything I could do to make the existing belt last for a little while longer.

The Fix

Yazoo mower belt tensioner.

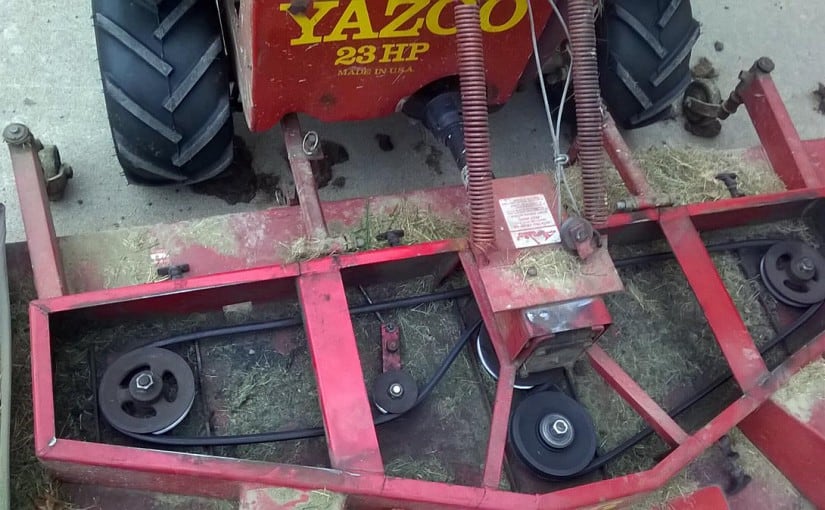

If you look closely, you can see that the Yazoo’s belt tensioner is an idler pulley mounted on a hinged lever. There is a rod connected to it that pulls the lever tight against the belt, using a threaded portion (out of view) with a jam nut against the deck housing. In the above picture, the nuts are threaded tight to the end of their threads, and the tensioner is at its maxed position, yet you can see how slack the belt appears.

So my first thought on how to tighten things up further was to mount a larger diameter pulley on the existing lever. But I don’t have a larger diameter pulley, so that meant still spending money.  Then I realized I could also drill a second pivot point into the lever, re positioning tensioner pulley out an additional 2-3 inches. The nice part is that if I ever need to revert to the original belt size, it will be a simple process to move the lever back to the factory setting, just using one bolt.

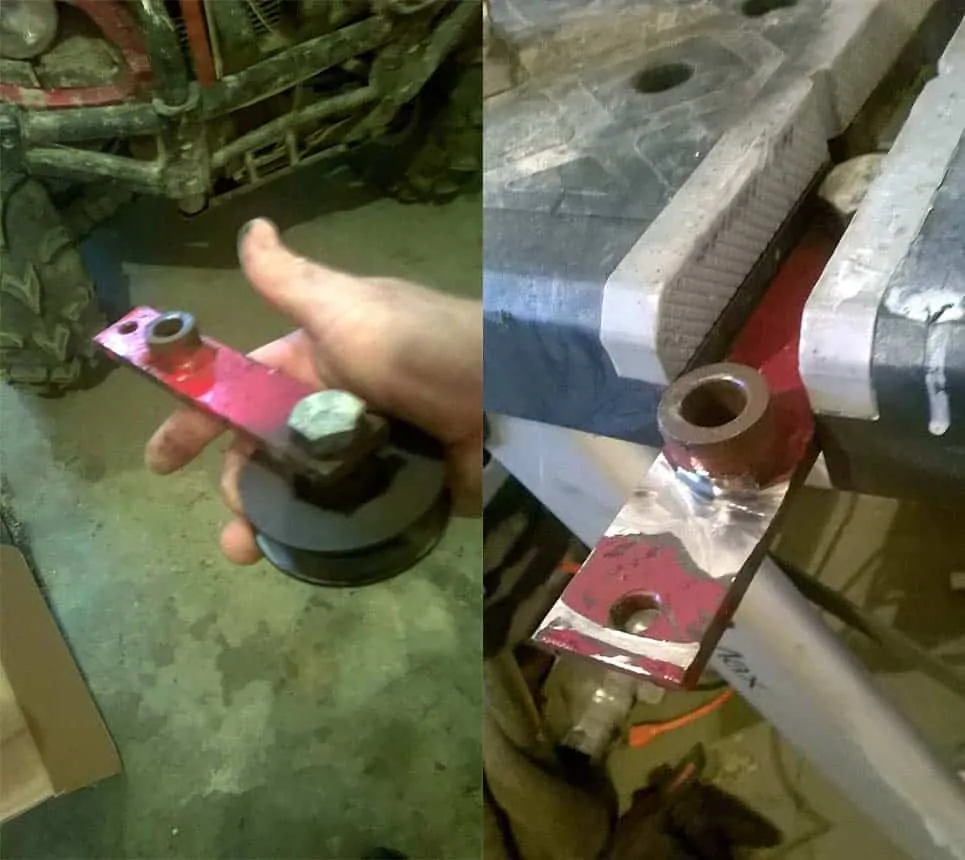

I removed the tensioner assembly, and discovered the spacer underneath was welded on. So I needed to grind those welds with an angle grinder in order to move it to my new pivot point.

Yazoo mower belt tensioner.

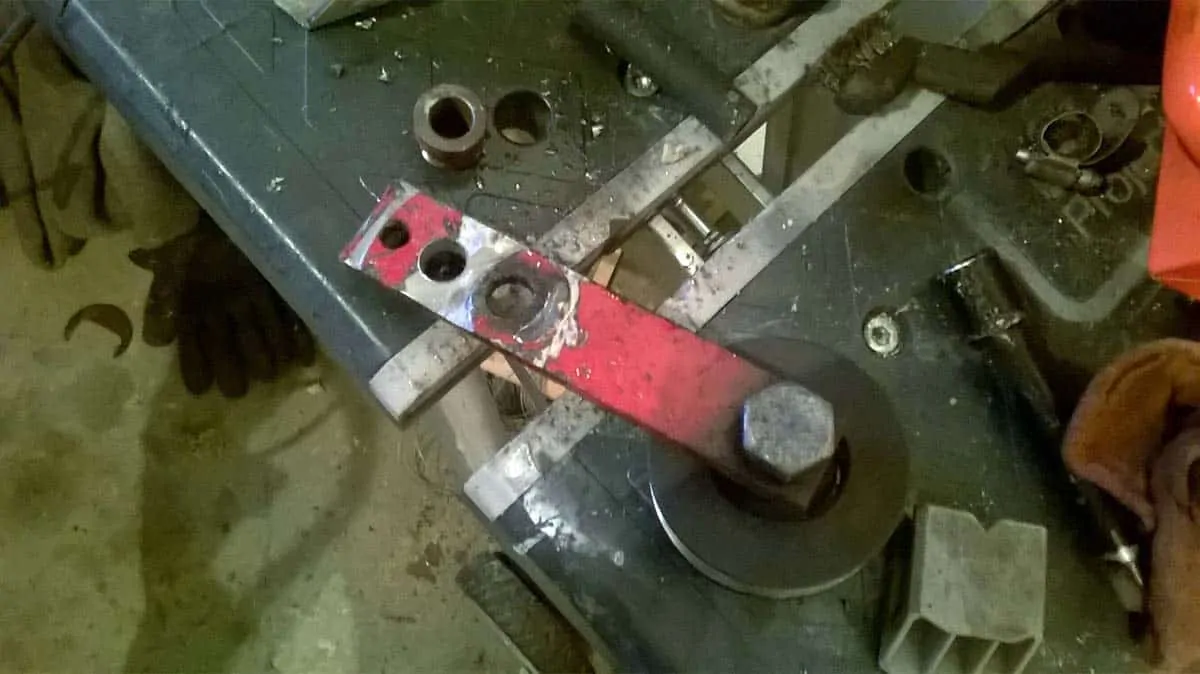

Once the spacer was separated from the lever, I drilled my new pivot point hole.

Yazoo mower belt tensioner.

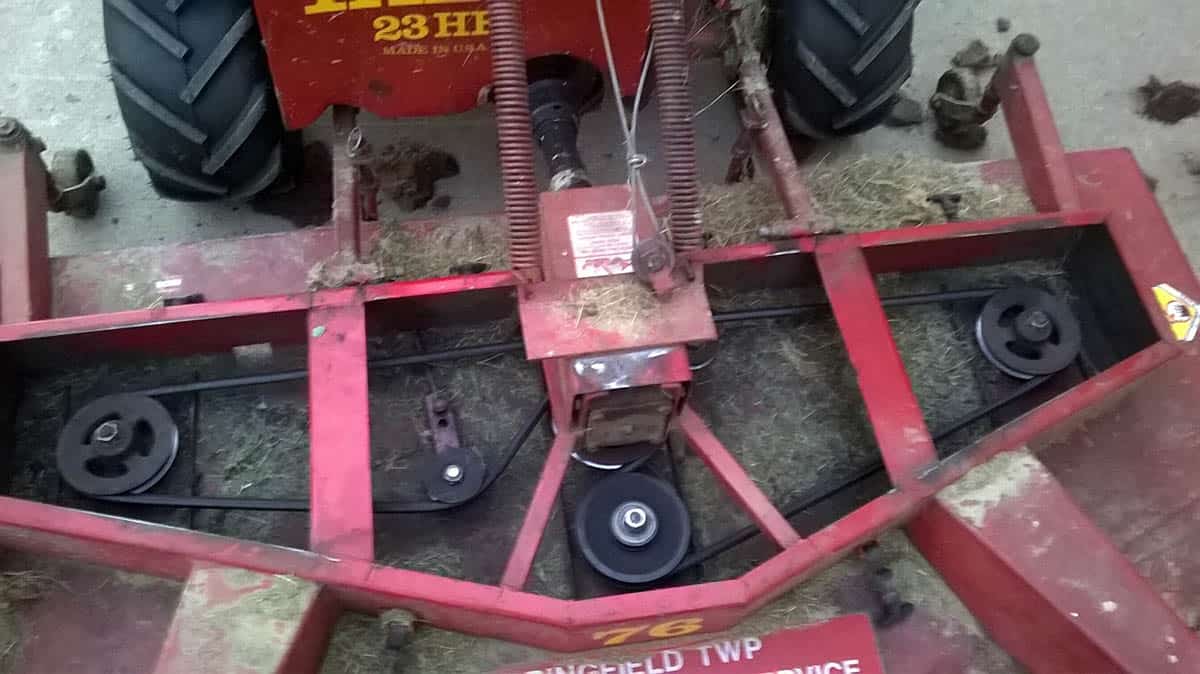

And here is the final result after reassembly.  The belt is fairly snug again, so should have some decent usable life still in it.  You can see the original hole in the tensioner lever. If I ever need to revert, I just remove the one bolt, position every thing back in the old hole and replace the bolt. Very easy!

Yazoo mower belt tensioner.

I was pleased with the result of this little mod, because it reminded me that you don’t always need to spend money and replace a part. Had money not been tight, I am not sure if I would have taken the time to consider other options, but now I am glad I did. I feel the mower can now utilize a wider size range of belts, and I have much more adjustment range as well.

I have a few more mods in mind for this mower as well. More on those coming soon!
