Restoring a Kubota B20 Tractor – Part 4

I repeated the compression test because I didn’t record the numbers before. In order to perform a compression test (using the injector holes), you will need to remove:

  • Air Filter Housing
  • Metal Injector Lines
  • Fuel Overflow / Bleed Line
  • Metal OverFlow / Bleed Line Rail
  • Injector Nozzles (make sure to remove the copper gasket from the bore for each one as well)

At this point you can test the compression of each cylinder. While cranking the engine, be sure to pull and hold the engine shutoff rod, so the injection pump is not squirting diesel fuel.You can optionally disconnect the glow plugs power wire to conserve battery as well.

The values I read for each cylinder was from back of engine to front (dry):
80 PSI – 160 PSI – 160 PSI

Since the #1 cylinder was especially low, I squirted some oil in the cylinder and repeated (wet).The value rose to 150 psi, which is a good indication the issue is with the piston rings, and not a valve issue.

The service manual spec for allowable range on compression is 337-448 psi, so all three cylinders are well below spec.

Kubota B20 Engine

At this point I pulled the head to check for any signs of damage to either the head, valves, or the pistons.

To remove the engine head on this tractor, you will need to (starting with parts already removed for compression test above):

  • Drain Oil & Coolant
  • Remove Air Filter Bracket & Fuel Filter Mounting Bolts
  • Remove Firewall Mounting Bracket Bolts to Head
  • Remove Exhaust Manifold (optional)
  • Disconnect Fuel Supply Hose to Injection Pump
  • Remove Air Intake Manifold
  • Remove Glow Plugs
  • Remove Top Radiator Hose
  • Remove Top Mounting Bolt on Alternator (and swing alternator out of way)
  • Move Fan Belt OfF Pulley
  • Remove Valve Cover
  • Remove Valve Rocker Arm Assembly
  • Remove Push Rods (inspect to make sure they are all straight)
  • Remove Head Bolts
  • Lift Head Assembly from Engine

The engine is quite crusty with carbon deposits, but I don’t seen any signs of head, piston, or valve damage yet. I will post a follow up again once I have pulled the valves apart and cleaned everything up for a more thorough inspection.

Kubota B20 Valve Cover and Rocker Arms Removed
Kubota B20 Engine Head Removed
Kubota B20 Underside of Engine Head

Click here for Part 5 on the Kubota B20 rebuild.

How to Control a Slide on Icy Surfaces

This video of a pile up in Montreal has been making the rounds in social media. It shows multiple vehicles, including two buses, a police car, and even a plow truck piling up on a very slippery roadway. It also perfectly illustrates both what works, and what not to do. The majority of the vehicles, including the plow truck, did not know what to do. Do you?

Continue reading How to Control a Slide on Icy Surfaces

How To Build a Large Solar Generator – Part 4 – Wiring

This is the fourth part in our series on how to build your own large solar generator. In this part we will be completing the wiring for the generator, including the solar charge controller, AC inverter, LED work lights, and USB outlets.

Continue reading How To Build a Large Solar Generator – Part 4 – Wiring

Restoring a Kubota B20 Tractor – Part 3

Getting back into this project. We have moved since I started this project and now have a garage bay I can use to continue working on the tractor. I was never able to get it to fully fired up. It would sputter and almost catch but never quite start. I finally did a compression check and was seeing low compression on all three cylinders, with one very low. I am guessing there was some engine damage due to overheating issues it was having back when it was running last.

Since it is going to need a rebuild of some sort, we loaded it up on my trailer and brought it back to my house where I can work on it in the garage.

Loaded Kubota B20 onto trailer.

Once back at my house, I needed to figure out a way to raise the bucket and hold it there so it wouldnt guoge the concrete. Many of the hoses are leaking, so I needed an external way to hold it up. I used a floor jack to lift the bucket off the ground, and a scrap board placed into the linkage to prevent the hydraulic cylinder from collapsing back down worked very well!

Lifting and holding bucket up with no power and leaking hoses.

Safely in the garage so I can start the engine tear down.

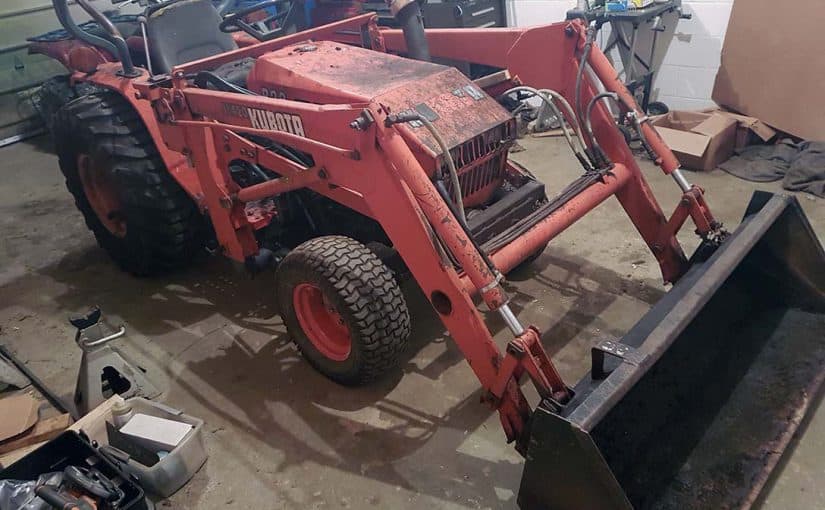

Kubota B20 before engine tear down.

She has definitely seen some wear, and sitting outside has taken a toll too. These pics will hopefully serve as some good “before” pics once I get it back up and running and cleaned up!

Kubota B20 weathered seat.
Kubota B20 weathered engine compartment.
20161119 124854
Kubota B20 weathered 3 point hitch

Click here for Part 4 on the Kubota B20 rebuild.
